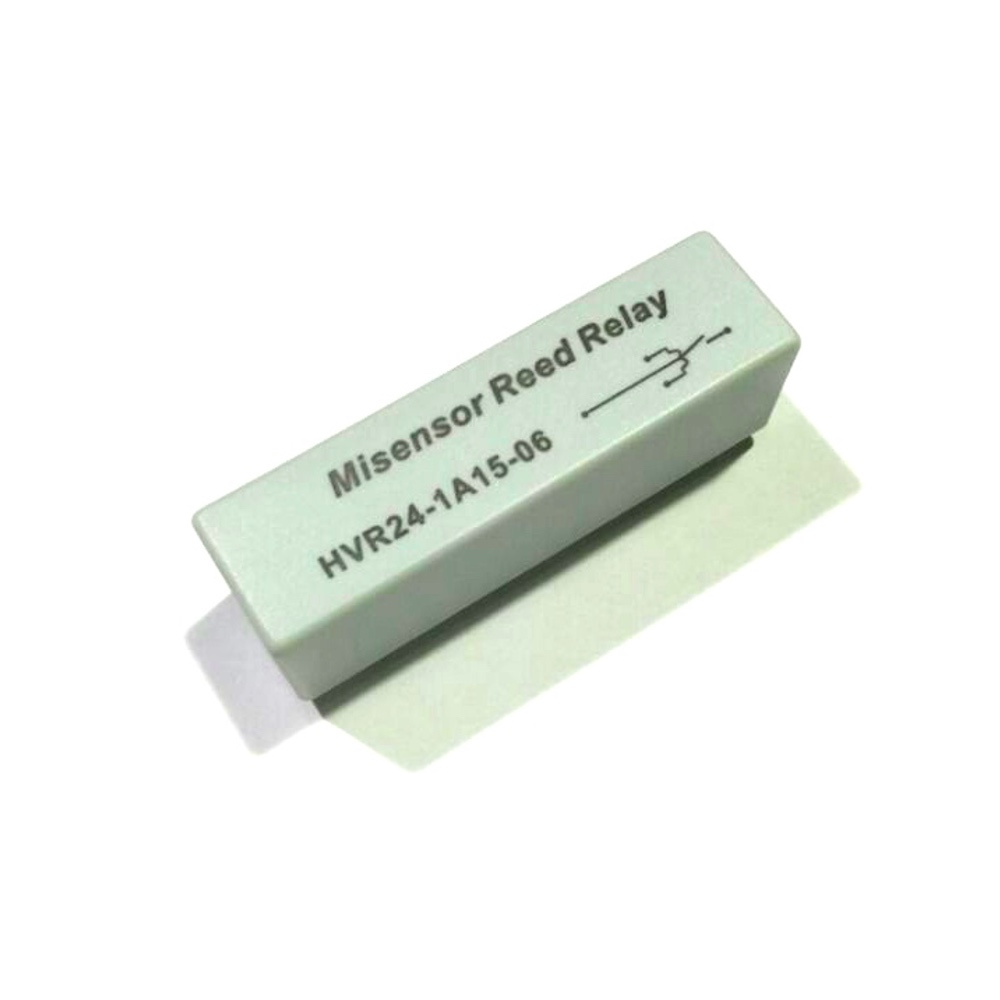

15KV Contact 24V Coil High Voltage Reed Relay HVR24-1A15-06

Original price was: $60.00.Current price is: $50.00.

Porduct Feature
Breakdown Voltage up to 15KVDC
Coil Voltage 24V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom design available

SKU: 1118808096112 Category: Tag:

Description

High Voltage Reed Relay HVR24-1A15-06

Tech Specifications

Description •        Product Attribute
•        Manufacturer SHR
•        Coil Resistance 200 Ohms
•        Coil Suppression Diode Yes
•        Coil Voltage 24 VDC
•        Max Operating voltage 29 VDC
•        Max Pull-in voltage 18 VDC
•        Min Drop-out voltage 2 VDC
•        Contact Material Tungsten
•        Maximum Switched Current 3.0 A
•        Max Carrying Current 5.0 A
•        Max Contact Resistance 150 mohm
•        Maximum Switched Power 50 W
•        Mounting Style PCB
•        Product Type Reed Relays
•        Series DA(UL)
•        Switching Voltage 7.5 kVAC
•        Min Breakdown Voltage 15k VDC
•        Dielectric Strength coil/contact 15 kVDC
•        Termination Style Through Hole
•        Type HVR Series
•        Operate Time,incl.Bounce 3ms
•        Reset Time 1.5ms
•        Capacitance Across Contacts 0.8 pF

Drawing

reed relay HVR24-1A15-06

Additional information

Weight 1 kg
Dimensions 15 × 15 × 15 cm
