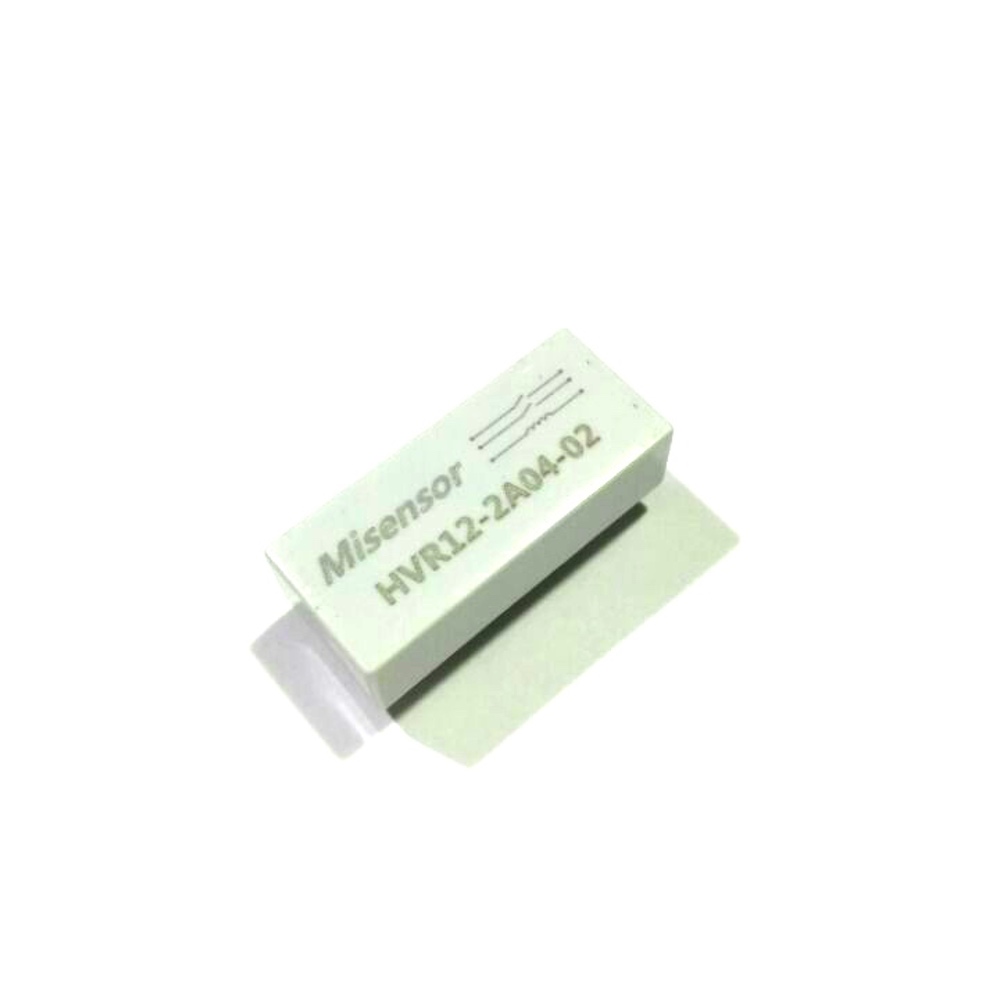

2 Channels Form A DPDT 4KV Contact 12V Coil High Voltage Reed Relay HVR12-2A04-02
Original price was: $55.00.$49.79Current price is: $49.79.
Product Feature
2 Channels
Breakdown Voltage up to 4KVDC
Coil Voltage 12V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom Design Available For Coil Resistance and Pin Out
Description
High Voltage Reed Relay HVR12-2A04-02
Product Attributes
| TYPE | DESCRIPTION |
| Category | High Voltage Reed Relays |
| Mfr | SHR Reed Relay |
| Series | 2 channels 4kv |
| Package | Bulk |
| Mounting Type | Through Hole |
|
Coil Parameters |
|
| Coil Voltage | 12VDC |
| Coil Type | Non Latching |
| Features | Diode, Electrostatic Shield |
| Termination Style | PC Pin |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Coil Resistance | 1.6 kOhms |
|
Contact Parameters |
|
| Max Contact Rating | 100W |
| Max Switch Voltage | 1000VAC Peak/VDC |
| Max Switch Current | 1A |
| Max Carrying Current | 2.5A |
| Min Breakdown Voltage | 4K VDC |
| Max Contact Resistance | 150 mohm |
|
Relay Parameters |
|
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -35°C ~ 105°C |
| Min Breakdown Voltage | 4K VDC |
| Dielectric Strength coil/contact | 4K VDC |
| Operate Time | 1 ms |
| Reset Time | 0.1 ms |
| Capacitance Across Contacts | 0.2pF |
| Soldering Temperature | 5sec max 260℃ |
Drawing
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
