SPDT Form C 5V Mercury Wetted Relay with Shell HGSR05-1C04

Product Feature

• High Power Mercury Reed Relay
• High Carry Current
• Low Contact Resistance
• Excellent Lifetime Characteristics

Description

Mercury Wetted Relay HGSR12-1C04

Product Attributes

TYPE	DESCRIPTION
Category	Mercury Wetted Relays
Mfr	SHR Reed Relay
Series	1 channels 2kv
Package	Bulk
Mounting Type	Through Hole
Coil Parameters
Coil Voltage	5VDC
Coil Type	Non Latching
Features	Diode, Electrostatic Shield
Termination Style	PC Pin
Must Operate Voltage	4 VDC
Must Release Voltage	0.5 VDC
Max Operating Voltage	7 VDC
Coil Resistance	125 Ohms
Contact Parameters
Max Contact Rating	30W
Max Switch Voltage	2000VAC Peak/VDC
Max Switch Current	2A
Max Carrying Current	5A
Min Breakdown Voltage	2K VDC
Max Contact Resistance	30 mohm
Relay Parameters
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-35°C ~ 105°C
Min Breakdown Voltage	2K VDC
Dielectric Strength coil/contact	2K VDC
Operate Time	1.25 ms
Reset Time	1.25 ms
Capacitance Across Contacts	0.4pF
Soldering Temperature	5sec max 260℃

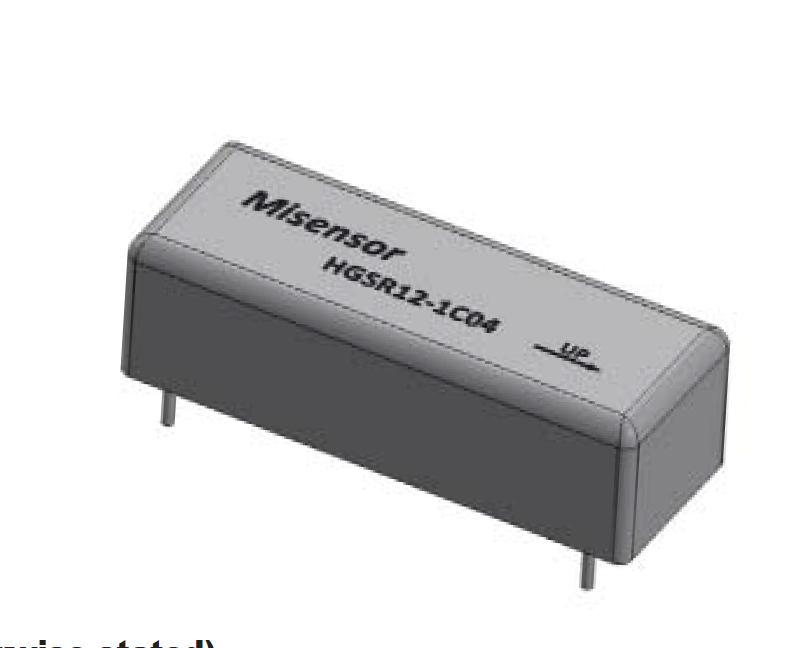

Drawing
