Reed relays and mercury wetted relays are both types of electromechanical switches used in various applications, including power systems, telecommunications, and industrial automation. While they share the function of switching electrical circuits, they differ significantly in their construction and operating principles.
Welcome to
SHR Reed Relay
Reed Relay, Mercury Relay, Wetted Relay, from 4kV, 6kV, 10kV, 15kV to 20kV.
High Voltage Reed Relay
10KV & 15KV Reed Relay:
- High Dielectric Strength Up to 15kV
- Hermetically sealed for long life
- Low Contact Resistance
- Excellent Lifetime Characteristics
- Custom Design Available For Coil Resistance And Pin Out.
4KV & 6KV Reed Relay:
- High Dielectric Strength Up to 4kV or 6kV
- Hermetically sealed for long life
- Low Contact Resistance
- Excellent Lifetime Characteristics
- Custom Design Available.

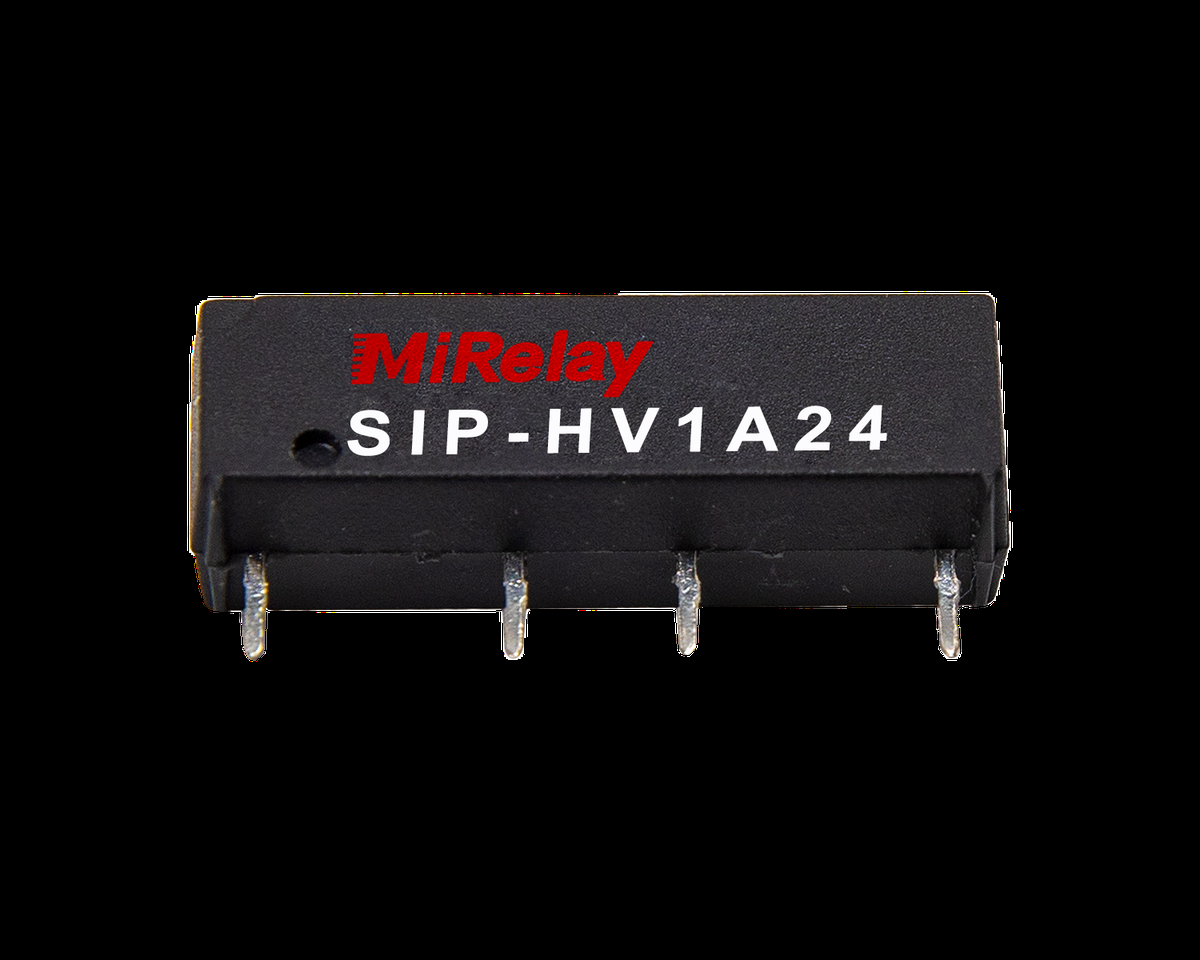

3KV & 4KV SIP-HV SERIES Reed Relay:
- High Dielectric Strength Up to 4kV
- Hermetically sealed for long life
- Low Contact Resistance
- Excellent Lifetime Characteristics
- Custom Design Available.
7KV SMD & THT SERIES Reed Relay:
- High Dielectric Strength Up to 7kV
- Hermetically sealed for long life
- Low Contact Resistance
- Excellent Lifetime Characteristics
- Custom Design Available.
Mercury Wet Reed Relay

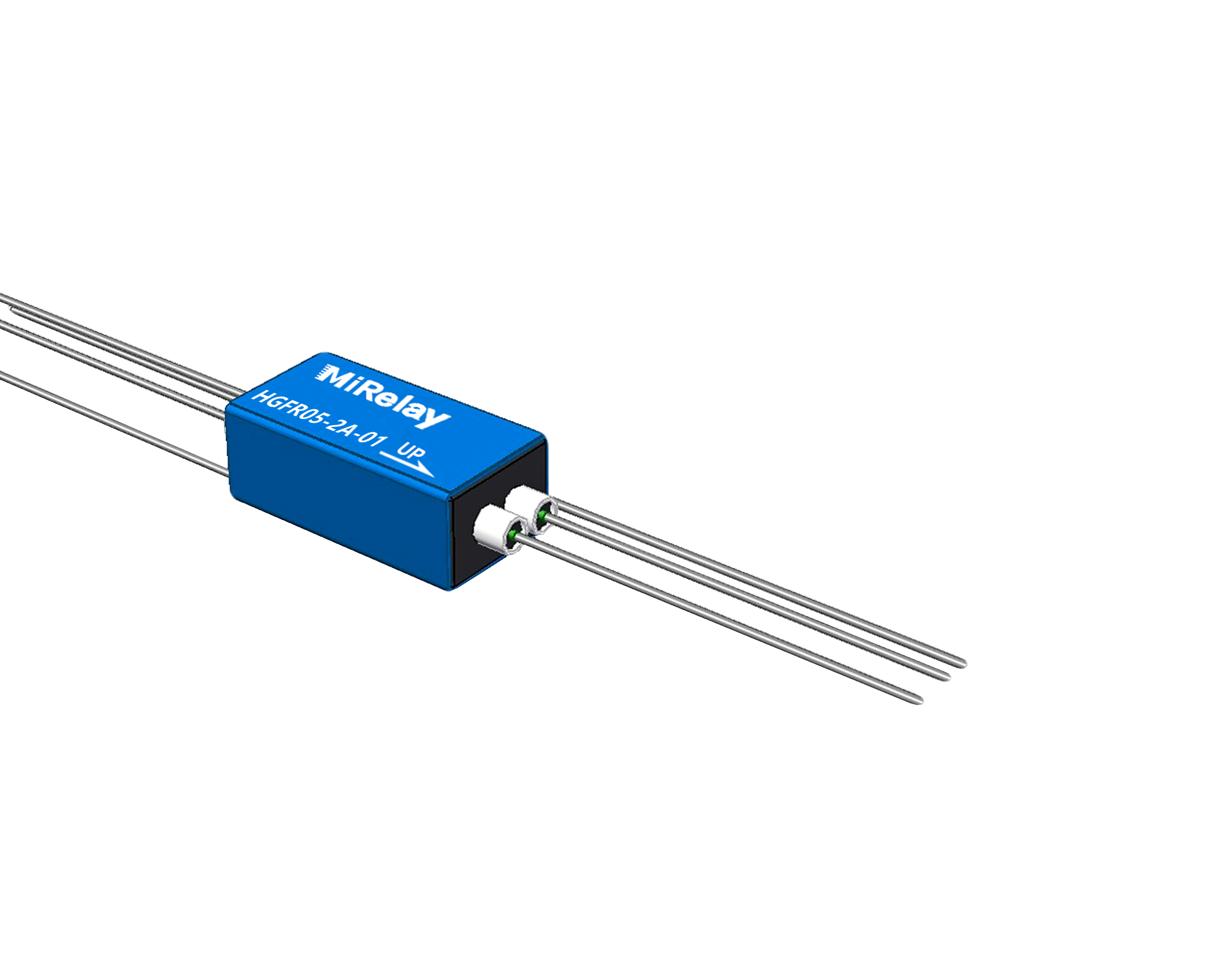

Mercury Wet Relay:
- High power mercury wetted relay, dielectric strength up to 2000VDC
- High Carry Current
- Low Contact Resistance
- Excellent Lifetime Characteristics
- External magnetic and electrostatic shield
High Voltage Reed Relay Module:
- Reed Relay on PCB with connector
- Good design to save space
- Custom design available
- Series connector for High Voltage or Parallel for more line
